¶ Getting to Know the olixSense™ X1
¶ Sensor Details
The OlixSense™ is a IMU sensor designed for use in robotics and other applications that require precise attitude and heading information. It uses a redundant 9 degree-of-freedom (DOF) sensor array, which provides accurate and stable measurements of orientation and angular velocity with a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer. Each of those provides a precise measurements along the x, y, and z axes. Together, they enable accurate tracking of orientation, linear acceleration, and magnetic field changesover time relative to a fixed reference frame.
¶ Key Features
9-degree-of-freedom orientation and acceleration measurements
Maximum data rate of 1000 Hz
Attitude and heading reference system (AHRS)
Compact and lightweight design
USB Type-C and Ethernet over USB communication options
Out-of-the-box ROS1 (via bridge) & ROS2 (native) support

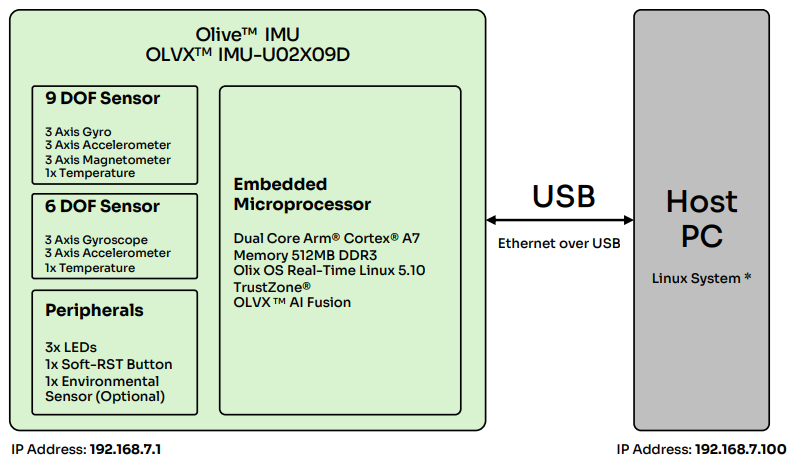

¶ Sensor System Architecture
