¶ olixSense™ X1 Ultra
¶ Sensor Details
The OlixSense™ is a IMU sensor designed for use in robotics and other applications that require precise attitude and heading information. It uses a redundant 9 degree-of-freedom (DOF) sensor array, which provides accurate and stable measurements of orientation and angular velocity with a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer. Each of those provides a precise measurements along the x, y, and z axes. Together, they enable accurate tracking of orientation, linear acceleration, and magnetic field changes over time relative to a fixed reference frame.
¶ Key Features
- 9-degree-of-freedom orientation and acceleration measurements
- Maximum data rate of 1000 Hz
- Attitude and heading reference system (AHRS)
- Compact and lightweight design
- USB Type-C and Ethernet over USB communication options
- Out-of-the-box ROS1 (via bridge) & ROS2 (native) support

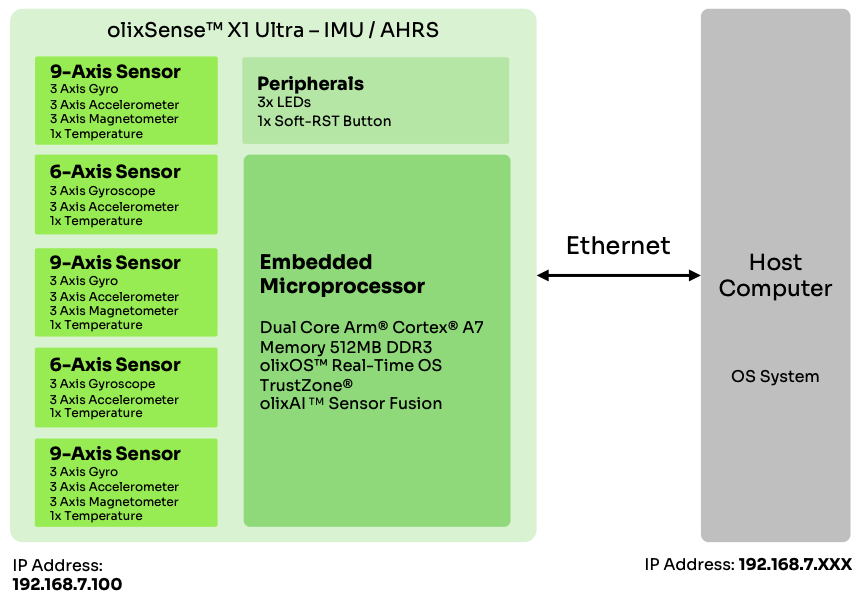

¶ Sensor System Architecture
