¶ Safety instructions
¶ Before The Opration
Before operating the robot, ensure that:
- The operating area is clear of obstacles and personnel
- All sensors are clean and unobstructed
- The emergency stop button is released
- The battery level is sufficient for operation
Do not operate the robot:
- On uneven or unstable surfaces
- On surfaces with liquids, oil, or loose debris
- In environments with strong electromagnetic interference
During the operation:
- Maintain safe distance between the robot and personnel during operation.
¶ Safety Button
 |

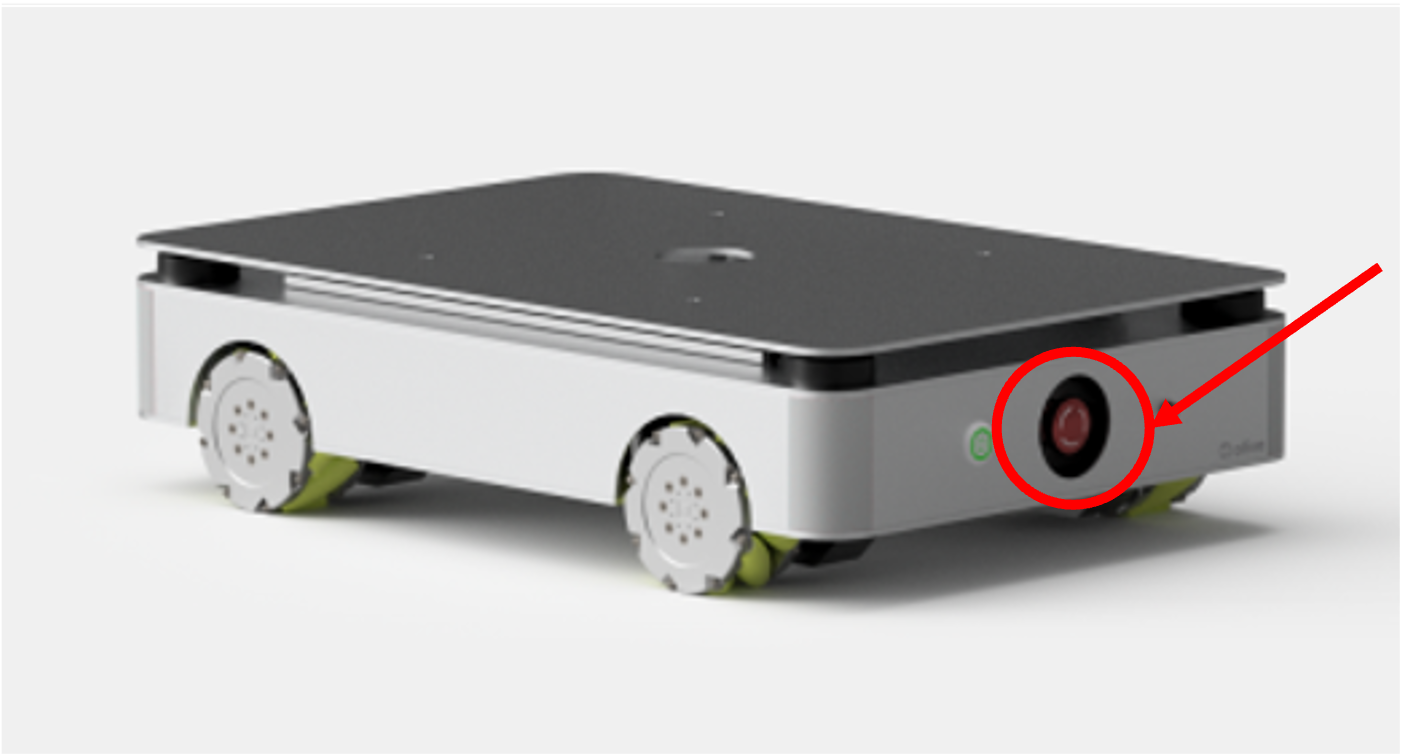

The robot is equipped with a emergency stop button on the backside.
Pressing the button immediately disables motor power and stops the robot.
You should activate the emergency stop immediately if:
- The robot behaves unexpectedly
- The robot is about to collide with obstacles or personnel
- Any abnormal noise, vibration, or overheating is detected
- The robot loses control or communication
When the emergency stop is active:
- Motor power is completely disabled
- Motion commands are ignored
- The status LED turns red
- The robot remains in a safe state until the button is released

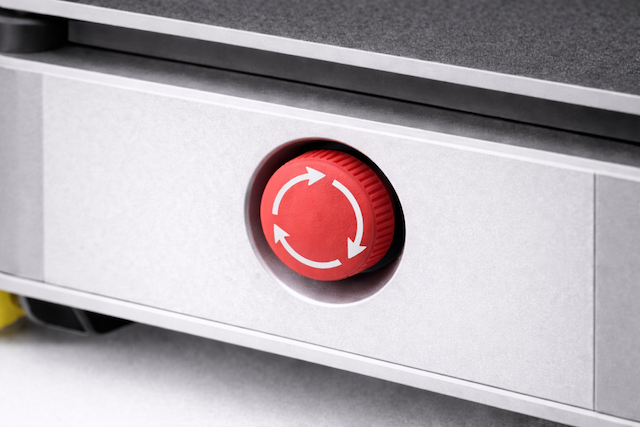

To exit the emergency stop state, rotate the button in the direction shown in the figure to release it.
.png) |
After release, the status LED returns to green, indicating that the robot has resumed normal operation and can move again.
After releasing the emergency stop:
- Verify that the surrounding area is safe
- Ensure no obstacles or personnel are nearby before resuming operation
¶ Charging
The robot must remain stationary while charging.
- Do not attempt to move or operate the robot during charging, as this may damage the charging hardware and create potential safety risks.
¶ Transportation
When transporting the robot:
- Power off the robot completely
- Secure the robot to prevent movement
- Use proper lifting equipment if required
 |

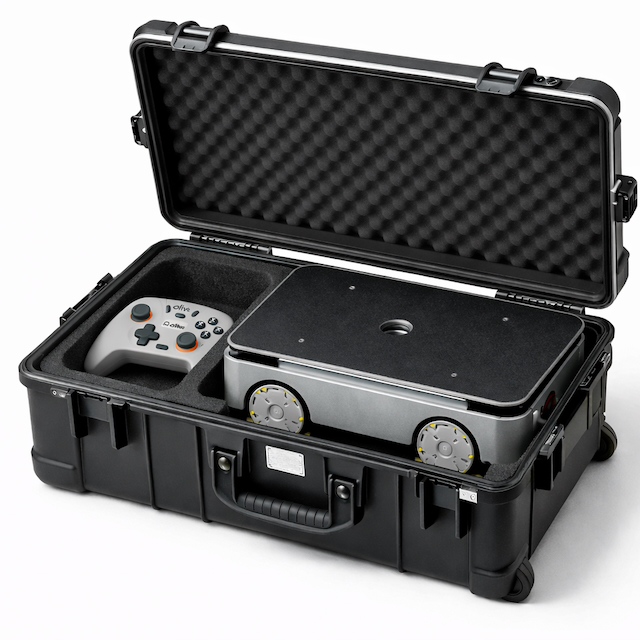

| The image shown above is for illustration purposes only. The actual transport packaging may vary depending on production batch, shipping method, and configuration. |
¶ Additional Safety Notes
If the robot will not be used for an extended period:
- Turn off the main power
- Store the robot in a dry, temperature-controlled environment
- Regularly inspect the emergency stop button to ensure proper mechanical operation.
